Anna I: The Voice

Overview

example/q_plug/anna_1 is the first of five stages of one polyphonic synthesizer, each a complete plugin. Stage 1 is the voice: a bandwidth limited sawtooth through an envelope, sixteen of them, played from a keyboard, with pitch bend, vibrato from the modulation wheel and the sustain pedal. Six sliders set the envelope, the velocity sensitivity and the volume.

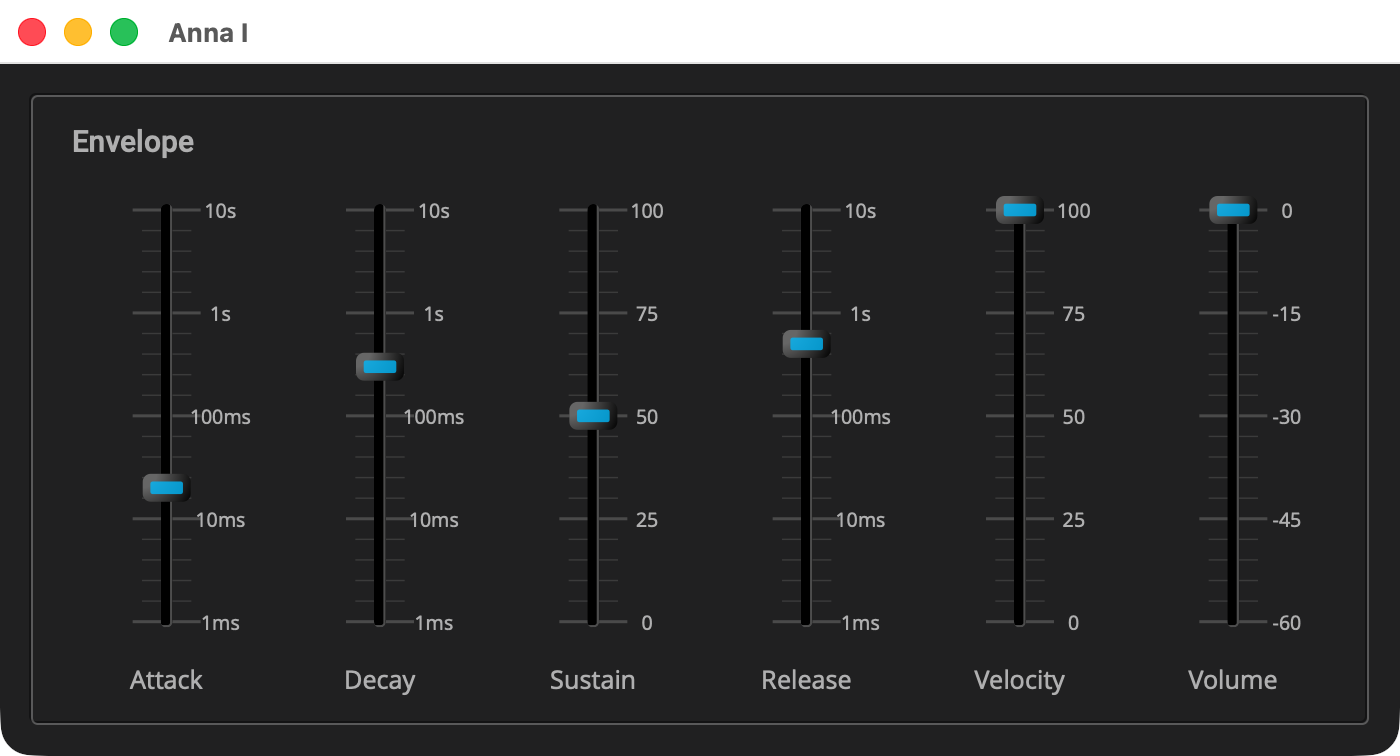

Anna I running as a standalone app
Figure 1. Anna I, running as a standalone app on macOS

Read Your First Plugin: Gain first. The Anna tutorials build on it, and each builds on the one before, so read them in order. What an earlier page has explained is not explained again here; a callout points back to it instead.

The synth is the one in Q’s Polyphonic Synth tutorial, made into a plugin. The voice pool, the way a note gets a voice, and the voice itself are the same code, less the voice’s filter, which comes back in stage 2. That tutorial explains them. This page covers what the plugin adds: parameters that change while notes sound, notes that come from a host, and a panel. The files are laid out as Gain’s are, with anna in place of gain. There is no resources/, because the panel draws everything it shows.

The listings below are the parts of each file that matter. Each title links to the whole file, and all of stage 1 is in example/q_plug/anna_1.

Quick Start

As in Your First Plugin: Gain, with anna_1 in place of gain. On macOS and Linux:

Q=/path/to/q
cp -R "$Q/example/q_plug/anna_1" /tmp/anna_1
cd /tmp/anna_1
cmake -B build -G Ninja -DCMAKE_BUILD_TYPE=Debug -DQ_ROOT="$Q"
cmake --build build

On Windows, in a command prompt with the MSVC environment loaded:

set Q=C:\path\to\q
xcopy /E /I "%Q%\example\q_plug\anna_1" "%TEMP%\anna_1"
cd /d "%TEMP%\anna_1"
cmake -B build -G Ninja -DCMAKE_BUILD_TYPE=Debug -DQ_ROOT="%Q%"
cmake --build build

Then start the standalone app:

  • macOS: open "build/products/Anna I.app"

  • Linux: "build/products/Anna I"

  • Windows: "build\products\Standalone-q_plug-anna-1_standalone\Anna I.exe"

Where the app takes its audio and MIDI from, and how to change it, is in The Standalone App.

The app takes MIDI from every connected input, so play it from a keyboard.

The Controller

👉  Tapers

A parameter’s value is a plain double in its own units: seconds for a time, decibels for a level. A control works in its travel, 0 to 1, and the parameter maps between the two. The default taper is linear. log makes it logarithmic, equal ratios for equal travel, which is how the ear hears time and pitch: half way along a 1 ms to 1 s control is 31.6 ms, not half a second. A log taper needs both ends of the range above zero. The taper belongs to the plugin’s own editor. The host gets the plain range, and its own controls and automation move linearly over it.

From Taper, in parameter.

anna_controller.hpp, the class
class anna_controller : public q_plug::controller
{
public:

   using duration = q::duration; (1)
   ...
   enum
   {
      attack_id, decay_id, sustain_level_id, release_id, velocity_id (2)
   ...
   };
   ...
   double               sustain_level() const;   // 0 to 1 (3)
   ...
   double               velocity() const;         // 0 to 1 (4)
...
};
1 A time is a duration, Q’s unit for time, as Gain’s volume is a q::decibel.
2 The indices, one per parameter, in the order parameters() lists them. As in Gain, the plugin addresses a parameter by its index.
3 The sustain level, as a fraction from 0 to 1, as a Minimoog’s sustain is. In decibels, most of the travel would sit where a held note is all but gone.
4 How much of the key’s velocity reaches the loudness, also 0 to 1.
anna_controller.hpp, two of the accessors
inline q::duration anna_controller::attack() const
{
   return get_parameter<duration>(attack_id); (1)
}
...
inline double anna_controller::sustain_level() const
{
   return get_parameter<double>(sustain_level_id) / 100.0; (2)
}
1 A time parameter reads back as a q::duration, the way Gain’s volume reads back as a q::decibel.
2 A plain number reads back as a double. The panel shows the sustain in percent, so the accessor divides.
anna_controller.cpp, the parameters
parameter_list anna_controller::parameters() const
{
   ...
   static parameter params[] =
   {
      parameter{1, "Attack", 20_ms} (1)
         .range((1_ms).rep, (10_s).rep).log().unit("s") (2)
    ...
    , parameter{3, "Sustain", 50.0}.range(0.0, 100.0).unit("%") (3)
    , parameter{5, "Release", 500_ms} (4)
    ...
    , parameter{13, "Velocity", 100.0}.range(0.0, 100.0).unit("%") (5)
    , parameter{18, "Volume", 0_dB}.range(-60.0, 0.0) (6)
   };

   return { params };
}
1 An initial value of 20_ms makes a time parameter, the way 0_dB made Gain’s volume a decibel parameter.
2 A range from 1 ms to 10 s, on a logarithmic taper, shown in seconds. A duration’s .rep is its value in seconds, the plain number a range takes. A range of four decades puts a label at each decade.
3 A plain number, with a range and a unit, here a percentage.
4 The ids skip 4. It belonged to a parameter this stage once had, and an id is never reused (see Your First Plugin: Gain).
5 Ids 6 to 12 are kept for the filter, which arrives in stage 2, so a preset saved here still reads there.
6 A decibel parameter, as in Gain, with its own range, -60 to 0 dB.

In depth: Parameters, for the kinds, ranges, tapers and units.

The Processor

👉  The ADSR Envelope

Q’s envelope generator is a sequence of segments. An attack starts it, from whatever level it is at, so retriggering a sounding note does not click. The segments after the attack, here the decay and the sustain, each ramp from the level before to their own. A release, at any point, ramps the output down to zero, and the envelope is then idle. Each segment’s length is set as its rate, a duration. The sustain of a classic ADSR has none: it holds its level until the release.

From Phases and Transitions, in Q’s Envelope Generator.

anna_processor.hpp, the envelope config
struct anna_envelope_config (1)
{
   q::duration    attack_rate;
   q::duration    decay_rate;
   q::decibel     sustain_level;
   q::duration    release_rate;
};
1 The settings of each voice’s envelope. With no sustain rate in them, Q’s envelope holds its sustain level until the key comes up.
👉  MIDI in a Processor

A processor that takes MIDI derives from midi_processor and writes one function call operator per message type. Overload resolution picks the one for each message, and a message with no overload of its own reaches the base’s catch-all, which does nothing.

A host may send notes as MIDI 1.0 bytes, as MIDI 2.0 packets or as CLAP’s own note events, depending on the host and the format; a plugin chooses none, and which one arrived makes no difference to it. QPlug brings each to MIDI 2.0 first, so the overloads are MIDI 2.0. A MIDI 1.0 message is widened, a velocity from 7 bits to 16 and a controller value to 32, and a MIDI 1.0 note-on of velocity 0 arrives as the note-off it means.

From The Dialects, MIDI 1.0 in a MIDI 2.0 Processor and Velocity Zero, in MIDI.

anna_processor.hpp, the voice
class anna_processor
 : public q_plug::midi_processor<anna_processor> (1)
{
public:

   using midi_processor::operator(); (2)
   ...
   struct voice (3)
   {
      ...
      float             operator()(float pitch_factor); (4)
   ...
   };
1 q_plug::midi_processor, from <q_plug/midi_processor.hpp>, is a processor like Gain’s, with the same channels, activate, reset and process, plus the MIDI described above. The class names itself as the template argument (the curiously recurring template pattern), which is how the base calls its handlers.
2 Without this, the handlers declared here would hide the base’s catch-all.
3 The voice of Polyphonic Synth, less its filter. That tutorial explains the voice, the pool and how a note takes a voice.
4 The plugin’s addition to the voice: a factor on the pitch the note was struck at, so bend and vibrato move every sounding note together.
anna_processor.hpp, the synth
   channel_config       channels() const override { return {0, 2}; } (1)
   ...
   void                 operator()(midi::note_on msg, std::size_t time); (2)
   ...
   void                 operator()(midi::pitch_bend msg, std::size_t time);
1 An instrument: no audio in, stereo out.
2 The four messages the synth handles: note-on, note-off, control change and pitch bend, in MIDI 2.0: midi is the header’s alias for q::midi_2_0, and cc for midi::cc. time is the message’s frame counted from the start of the host’s block, not of the call.
anna_processor.hpp, the bend and the envelope settings
   static constexpr float  bend_range = 2.0f;          // semitones (1)
   static constexpr float  vibrato_depth = 0.5f;       // semitones
   ...
   struct settings (2)
   {
   ...
   };
1 Pitch bend reaches two semitones each way, and the wheel’s vibrato, from the sine generator _lfo, half a semitone.
2 The envelope settings last pushed into the voices, so only a setting that has changed is pushed again.
anna_processor.cpp, the voice
void voice::on(q::frequency freq, float velocity)
{
   ...
   _env.attack(); (1)
}
...
float voice::operator()(float pitch_factor)
{
   auto env = _env() * _velocity;
   _phase.set(q::frequency{as_float(_freq) * pitch_factor}, _sps); (2)
   return q::saw(_phase++) * env; (3)
}
1 Retriggers a voice, a stolen one included, without a click.
2 _phase is Q’s phase_iterator, which steps through one cycle of the waveform per period. It is set to the pitch the note was struck at, times the factor bend and vibrato make, and env is the envelope’s output, scaled by the velocity.
3 Q’s bandwidth limited sawtooth, saw_osc, through the envelope, an envelope_gen. The header includes both, and the sin_cos_gen the vibrato uses.
anna_processor.cpp, the envelope config
anna_envelope_config anna_processor::envelope_config() const
{
    ...
    , q::lin_to_db(_ctl.sustain_level()) (1)
...
}
1 Q’s envelope takes its sustain level in decibels, so the panel’s fraction is converted here.
anna_processor.cpp, activate
void anna_processor::activate()
{
   auto const cfg = envelope_config();
   _voices.clear();
   _voices.reserve(num_voices);
   for (std::size_t i = 0; i != num_voices; ++i)
      _voices.emplace_back(cfg, float(sps())); (1)
1 The pool is built in activate, where the sample rate is known. Q’s example builds it when the synth is made.
anna_processor.cpp, reset
void anna_processor::reset()
{
   ...
   for (auto& v : _voices)
   {
      v._env = q::adsr_envelope_gen{cfg, float(sps())}; (1)
   ...
   }
1 reset silences every voice by rebuilding its envelope, so no note rings across a transport jump.
anna_processor.cpp, update_envelopes
void anna_processor::update_envelopes()
{
   ...
   for (auto& v : _voices)
   {
         ...
         v._env.attack_rate(q::duration{now.attack}, rate); (1)
   ...
   _pushed = now;
}
1 Q’s example sets its envelopes once. A plugin’s settings change while notes sound, so now, the settings read from the controller in this call, is compared with what was pushed last, and a segment’s setter is called only when its setting has changed. The settings are kept as plain seconds, hence q::duration{now.attack}. A rate changed while its segment runs carries on from where it is.
anna_processor.cpp, process
void anna_processor::process(in_channels const& /*in*/
 , out_channels const& out)
{
   update_envelopes(); (1)
   ...
   for (auto frame : out.frames)
   {
      ...
      auto const pitch_factor = std::exp2((_bend + vibrato) / 12.0f); (2)
      ...
      left[frame] = right[frame] = mix * headroom * _volume(volume); (3)
...
}
1 The envelopes are brought up to date once per call. As in Gain, that is enough: each call is a run of frames between the host’s events.
2 Twelve semitones is a doubling, so bend and vibrato, in semitones, become one ratio.
3 out.frames is the call’s range of frames, and left and right are the two output channels, out[0] and out[1], indexed by frame. The sum of the voices goes to both channels, scaled by the smoothed volume and by headroom, 0.3, which leaves room for sixteen voices at once. Q’s example soft-clips after this, since it plays straight to an audio device. A plugin has its volume control and the host’s meter instead, so nothing shapes the sound on the way out.
anna_processor.cpp, the notes
void anna_processor::operator()(midi::note_on msg, std::size_t)
{
   ...
   note_on(msg.key(), float(msg.velocity()) / 65535); (1)
}
...
void anna_processor::operator()(midi::control_change msg, std::size_t)
{
   ...
   if (msg.controller() == cc::sustain)
      sustain(msg.value() >= 0x80000000u); (2)
   else if (msg.controller() == cc::modulation)
      _wheel = float(msg.value()) / 4294967295.0f; (3)
}
...
void anna_processor::operator()(midi::pitch_bend msg, std::size_t)
{
   ...
   _bend = (float(msg.value()) - float(midi::pitch_bend::center)) (4)
      / float(midi::pitch_bend::center) * bend_range;
}
...
void anna_processor::note_on(std::uint8_t key, float velocity)
{
   allocate(key).on(midi::note_frequency(key), sensed(velocity)); (5)
}
...
float anna_processor::sensed(float velocity) const
{
   ...
   return (1.0f - s) + s * velocity; (6)
}
1 A MIDI 2.0 velocity is 16 bits, hence 65535 for full.
2 A MIDI 2.0 controller value is 32 bits. The sustain pedal counts as down from the middle of the range up.
3 The modulation wheel, 0 to 1, sets the vibrato’s depth.
4 Pitch bend, 32 bits centered on midi::pitch_bend::center, scaled to the bend range.
5 midi::note_frequency is the key’s pitch.
6 Velocity sensitivity mixes the key’s velocity with full: at 0 every note is the same.
anna_processor.cpp, the sustain pedal
void anna_processor::note_off(std::uint8_t key)
{
         ...
         if (_sustain)
            v._held = true; (1)
         else
            v.off();
...
}
1 With the pedal down, a key coming up marks its voice held rather than releasing it. Lifting the pedal releases what it held.
anna_processor.cpp, the pool
voice& anna_processor::allocate(std::uint8_t key) (1)
{
   auto free = std::ranges::find_if(
      _voices, [](voice const& v) { return !v.active(); });

   voice& v = (free != _voices.end())?
      *free
    : *std::ranges::min_element(_voices, {}, &voice::_order);

   v._key = key;
   v._order = ++_order;
   v._held = false;      // struck again: the pedal is no longer holding it
   return v;
}
1 A free voice, or the oldest sounding one, as in Polyphonic Synth.

In depth: MIDI, for midi_processor, the dialects and how MIDI 1.0 reaches a MIDI 2.0 processor, and Processor, for the life cycle.

The Presenter

anna_presenter.hpp has the shape of Gain’s presenter header.

anna_presenter.cpp, the slider
   template <typename... Labels>
   auto make_slider(Labels&&... labels) (1)
   {
      ...
      return share(
            ...
            basic_rect_thumb<24, 14>() (2)
               ...
               slider_marks_lin<28, 4, 5>(basic_track<6, true>()) (3)
   ...
   template <typename Subject>
   auto captioned(Subject&& subject, char const* text)
   {
         ...
         caption( (4)
   ...
   }
1 One function makes every slider, shared, as bind takes it (see Your First Plugin: Gain).
2 A rectangular thumb that Elements draws, so this plugin ships no images.
3 A linear track with four major divisions and five minor steps in each, so the major ticks fall at zero, a quarter, a half, three quarters and full.
4 Elements' caption, the parameter’s name under its slider.

Your First Plugin: Gain bound its fader through a db_scale, a mapping between the control’s travel and the parameter’s value. A parameter is itself such a mapping, over its own range and taper, so here each slider is bound with its parameter’s declaration.

anna_presenter.cpp, the bindings
void anna_presenter::on_attach(elements::view& view_)
{
   ...
   auto const& params = _ctl.parameters(); (1)

   auto attack = make_slider("1ms", "10ms", "100ms", "1s", "10s"); (2)
   ...
   auto link = [&](int id, auto control)
   {
      bind(id, control, params[id]); (3)
   ...
   link(ctl::attack_id, attack);
   ...
   link(ctl::volume_id, volume);
1 The parameter list, whose declarations bind takes below. ctl, used below, is the function’s alias for anna_controller.
2 Each slider’s labels, one per major tick, bottom to top. On a log taper spanning four decades, that is a label per decade.
3 Gain’s bind took a db_scale; this one takes the parameter’s own declaration, which maps the control’s travel, 0 to 1, to the parameter’s range and taper, log or linear.
anna_presenter.cpp, the layout
   view_.content(
      fixed_size({700, 346}, (1)
            ...
            margin({6, 6, 6, 6}, group("Envelope", (2)
                     ...
                     htile( (3)
      ...
      box(bkd_color)
...
}
1 A fixed layout, the size plugin_info gives. Without a fixed size, the panel would have no maximum, and a host would let the user resize its window freely.
2 A framed group per section of the signal path. Stage 1 has one.
3 The six sliders side by side, each captioned.

In depth: Presenter, for bind and the panel’s size, and the Elements documentation, for sliders, captions and groups.

The Plugin

anna.cpp is Gain’s gain.cpp with the names changed, and a different identity:

anna.cpp, the identity
   plugin_info const& info()
   {
         ...
         "instrument", (1)
      ...
      static plugin_info const i = (2)
      {
      ...
      return i;
1 instrument puts the plugin in a host’s instrument menu, and a host that reads the features does not offer it as an insert. synthesizer and stereo describe it further.
2 The view size is the panel’s fixed_size. The state version is 2, since stage 1 once kept its sustain in decibels and now keeps it in percent, which changed what a saved value means.

The Build

CMakeLists.txt is Gain’s with the names changed, and two differences in kind. AUV2_INSTRUMENT_TYPE is aumu, a music device, where Gain’s was aufx, an effect. q_plug_add_resources names no files, since the panel draws everything it shows; the fonts go in all the same.

Running

Inside Q’s build, as QPlug Setup and Installation describes, the synth is built with everything else. The validation tests of all five stages run with:

ctest --test-dir cmake-build-debug -R anna

The products are named Anna I, laid out as Gain’s are, and install the same way. Insert the synth on an instrument track, open its editor, and play: the bend and modulation wheels and the sustain pedal work from the first note.

Components Used

Component Role

midi_processor

The processor base that takes MIDI

parameter

Times on a log taper, percentages, a volume

saw_osc

The voice’s oscillator

envelope_gen

The voice’s envelope

sin_cos_gen

The vibrato

presenter

bind with the parameter’s own taper

Previous: Your First Plugin: Gain | Next: Anna II: The Filter
